This is an intelligent channel type series almond color sorting machine that can sort bad fruits, insect eye fruits, moldy fruits, and discolored fruits in almonds, effectively removing impurities such as soil lumps, small stones, glass, and desiccants.
Product Introduction
This is a highly cost-effective nut color sorter with an excellent sorting system that uses AI technology to capture and process images, backup settings, mode backup and transmission, and a user-friendly operating system. Convenient, fast, ultra high definition full color imaging and recognition system. The sorting accuracy is as high as 99.99%, and it has excellent performance in color and shape selection, helping various food enterprises and nut processing enterprises to create high-quality nuts, stable and high yield, and improve efficiency. Comprehensively ensuring quality and safety.
Application Field
Suitable for the classification and grading of various nut materials such as nuts, walnuts, peanuts, almonds, cashews, pine nuts, hazelnuts, macadamia nuts, melon seeds, magnolias, figs, pistachios, ginkgo biloba, olives, raisins, chestnuts, candied fruits, etc

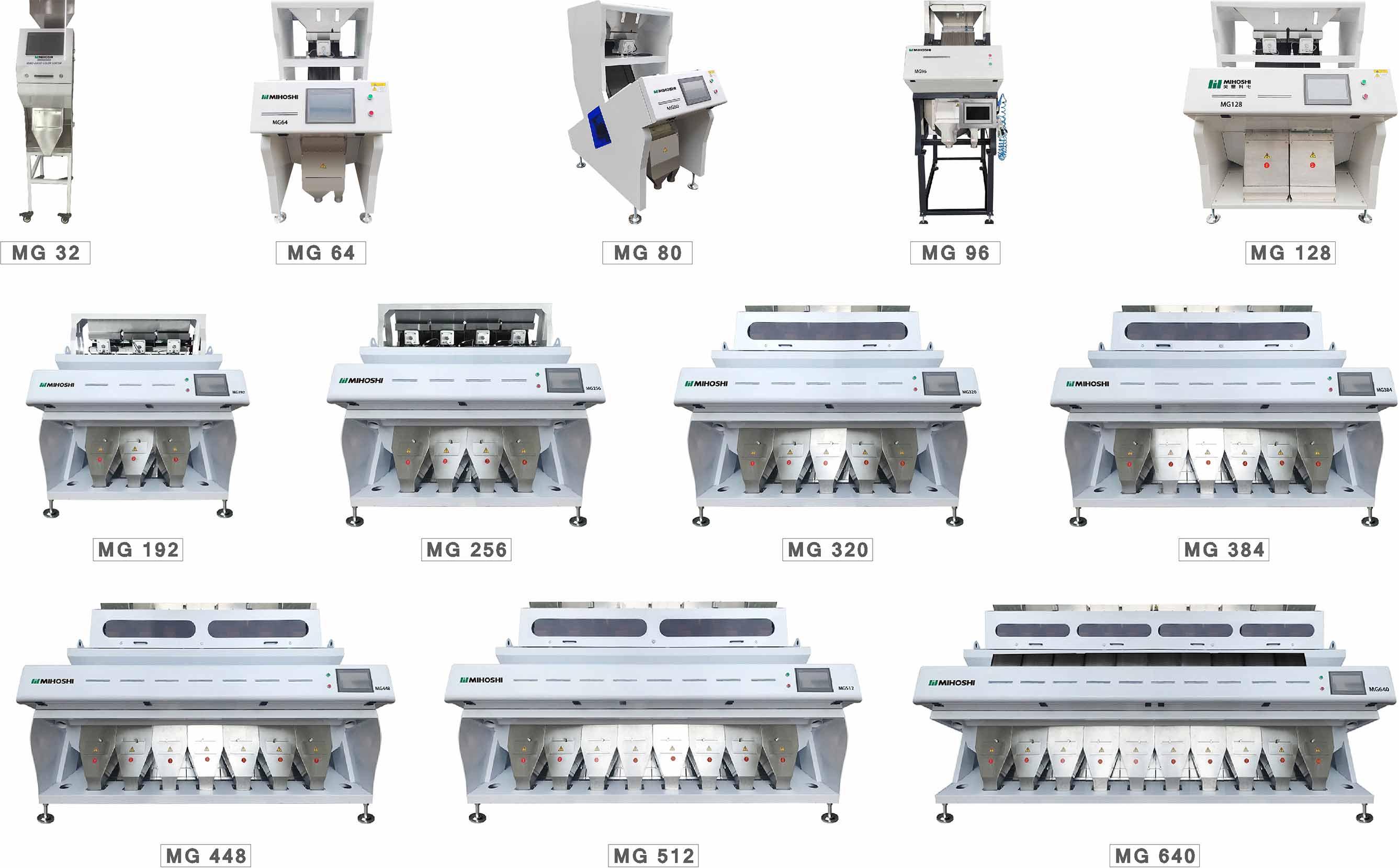

Product models of Chutes color sorter （MG Series）
Product Specificities
Technicial Specifications
| Product model |
Capacity (T/h) |
Accuracy (%) |
Voltage (V/Hz) |
Power (kW) |
Air pressure (Map) |
Air consumption (L/min) |
Weigh t(Kg) |
Dimension (mm) |
| MG32 | 0.2-0.5 | ＞99.99% | 220/50 | 0.5-0.8 | 0.6-0.8 | 0.1-0.3 | 120/180 | 590X1504X1760 |
| MG64 | 0.8-1.6 | ＞99.99% | 220/50 | 0.8-1.5 | 0.6-0.8 | 0.3-0.8 | 300/350 | 880X1504X1760 |
| MG80 | 1-2 | ＞99.99% | 220/50 | 1-1.8 | 0.6-0.8 | 0.3-0.8 | 350/400 | 900X1504X1760 |
| MG96 | 1-3.5 | ＞99.99% | 220/50 | 1.2-1.8 | 0.6-0.8 | 0.4-0.9 | 300/400 | 1550X940X1750 |
| MG128 | 2-6 | ＞99.99% | 220/50 | 1.3-2.2 | 0.6-0.8 | 0.5-1.0 | 700/860 | 1314X1504X1760 |
| MG192 | 3-9 | ＞99.99% | 220/50 | 1.5-2.5 | 0.6-0.8 | 0.8-1.5 | 950/1000 | 1650x1504X1760 |

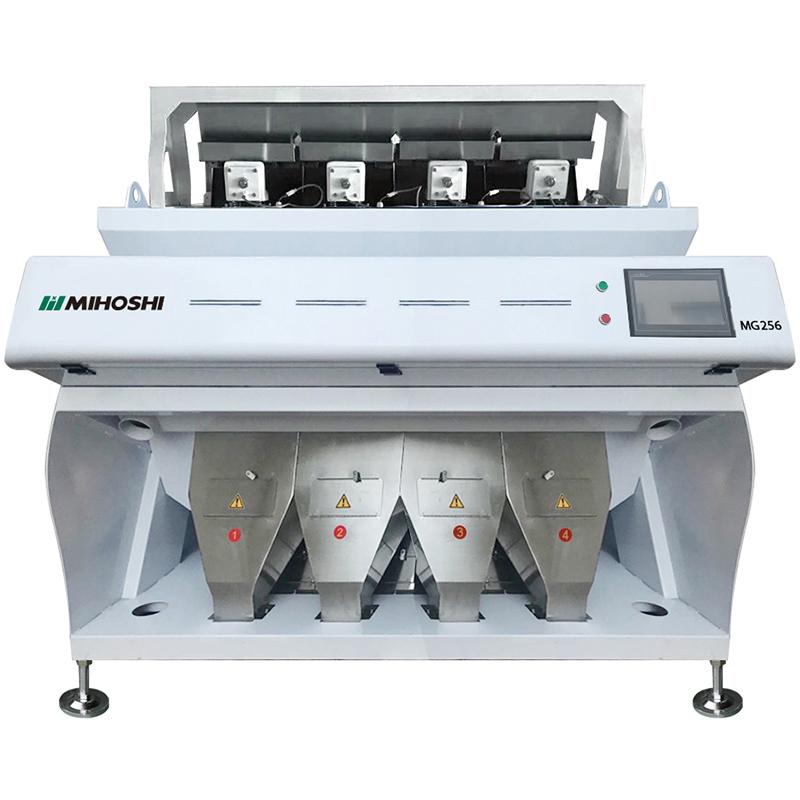

| MG256 | 4-12 | ＞99.99% | 220/50 | 1.8-3 | 0.6-0.8 | 1.0-2.0 | 1100/1200 | 1986X1504X1760 |

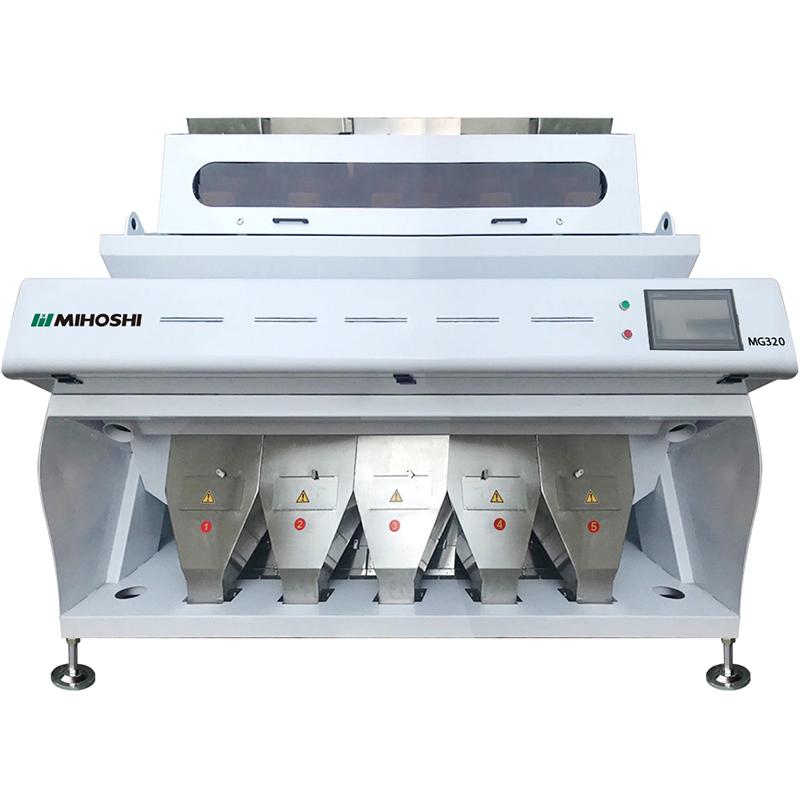

| MG320 | 5-15 | ＞99.99% | 220/50 | 2.2-3.7 | 0.6-0.8 | 1.3-2.1 | 1280/1350 | 2322x1504X1760 |
| MG384 | 6-18 | ＞99.99% | 220/50 | 3.6-4.5 | 0.6-0.8 | 2.0-3.5 | 1400/1500 | 2658X1504X1760 |

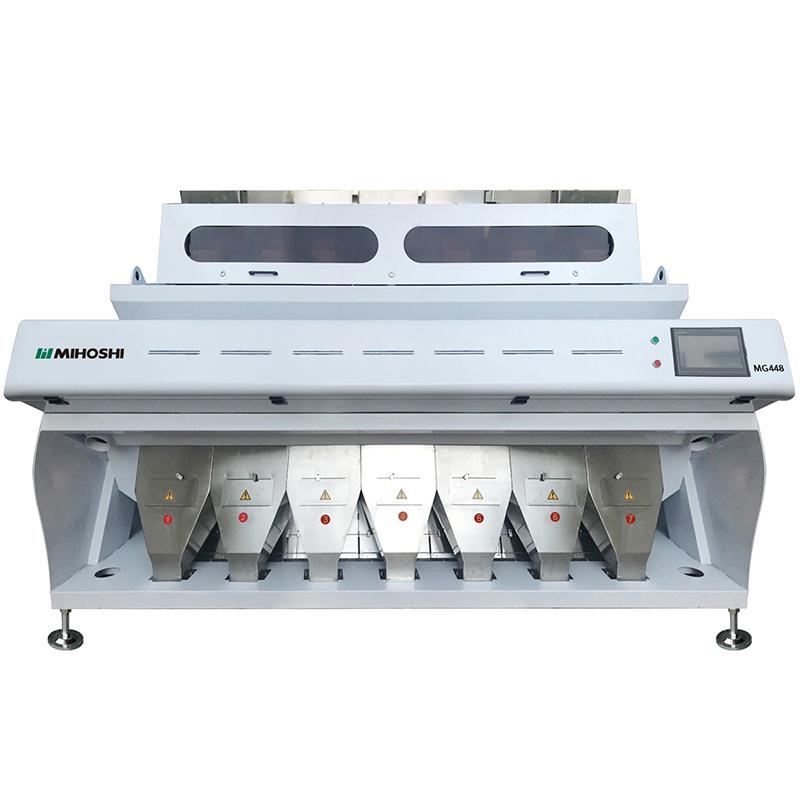

| MG448 | 7-21 | ＞99.99% | 220/50 | 4.1-5.5 | 0.6-0.8 | 2.5-4.3 | 1500/1600 | 2994x1504X1760 |
| MG512 | 8-24 | ＞99.99% | 220/50 | 4.7-6 | 0.6-0.8 | 3.0-4.5 | 1700/1800 | 3330X1504X1760 |
| MG640 | 10-30 | ＞99.99% | 220/50 | 4.5-7.5 | 0.6-0.8 | 5.0-6.5 | 2000/2250 | 3666X1504X1760 |
| MG768 | 12-38 | ＞99.99% | 220/50 | 5.2-8.8 | 0.6-0.8 | 7.0-8.5 | 2500/2600 | 4200x1504X1760 |
